4" - 6" Lift kit w/ Bilstein Shock Absorbers - GMC 2500HD Pickup 2WD & 4WD

4"-6" Suspension System w/ Bilstein 5100 Series Shock Absorbers for the 2011-2014 GMC 2500HD, 8-Lug, Independent Front Suspension

Part #: 10-41811


MSRP: $2,560.00 USD

More details

This kit is compatible with:

2011-2014 GMC 2500HD Pickup - 4WD & 2WD

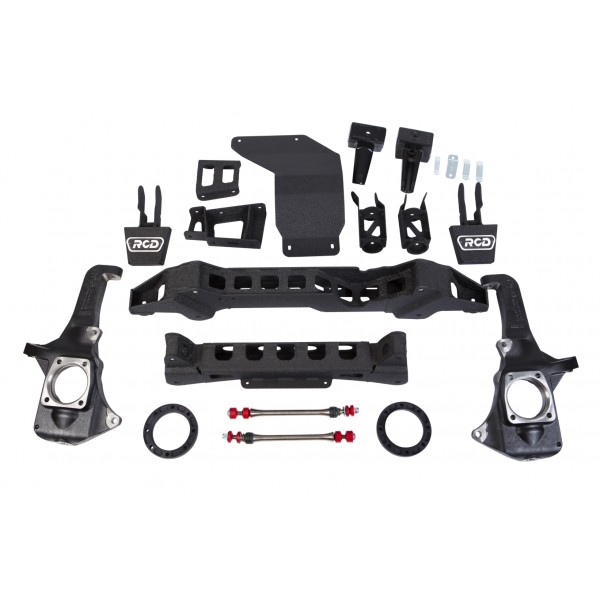

This suspension system includes:

  -Front & Rear Crossmembers

  -Driver Spindles

  -Lateral Compression Strut Kit

  -Main Kit

  -Rear Kit

  -Passenger Spindle

  -Bilstein 5100 Series Shocks



Wheel/Tire Specifications:

 Max Tire Size: 33” x 12.5” w/ no modifications necessary

 35” & larger x 12.5” require minor bumper and/or fender trimming

Max Backspace:

16” x 8” - 4.5” backspacing 17” & larger x 8” = 4.625” backspacing


Additional Information:

  -Recalibration of the speedometer, ABS and stability control systems (if applicable) will be required by an authorized GMC/Chevy Dealer

  -Must enlarge lower control arm sway bar end link mounting hole to 3/4”

  -Will not work on vehicles equipped with rear steering


FAQ:



  How tall is the rear block on the 10-41811?  Answer 4”

      Answer: 4"

  How much is the front differential dropped on the 10-41811?

      Answer: 6"
