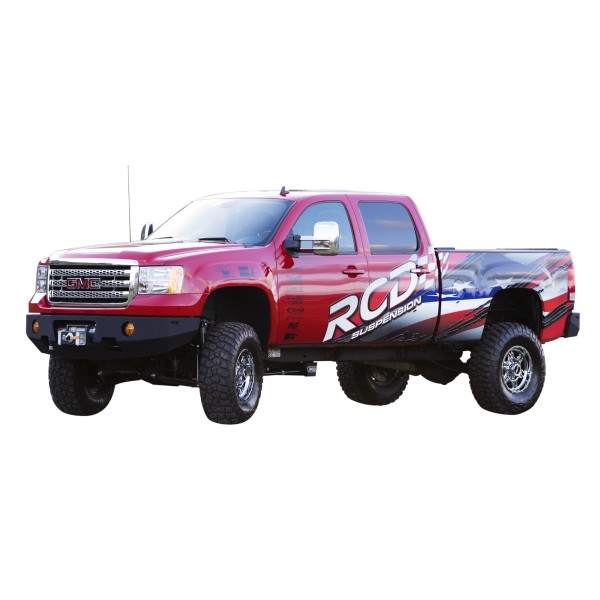

4" - 6" Lift Kit w/ Fox Shock Absorbers - GMC 2500HD Pickup 2WD & 4WD

4"-6" Suspension System w/ Fox 2.0 Performance IFP Shock Absorbers for the 2011-2014 GMC 2500HD, 8-Lug, Independent Front Suspension

Part #: 10-41811-F

More details

This kit is compatible with:

2011-2014 GMC 2500HD Pickup - 4WD & 2WD

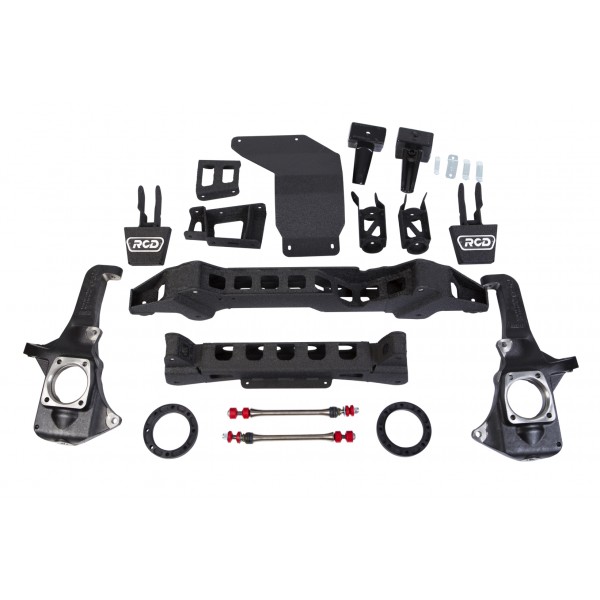

This suspension system includes:

  -Front & Rear Crossmembers

  -Driver Spindles

  -Lateral Compression Strut Kit

  -Main Kit

  -Rear Kit

  -Passenger Spindle

  -Fox Performance Series Shocks



Wheel/Tire Specifications:

 Max Tire Size: 33” x 12.5” w/ no modifications necessary

 35” & larger x 12.5” require minor bumper and/or fender trimming

Max Backspace:

16” x 8” - 4.5” backspacing 17” & larger x 8” = 4.625” backspacing


Additional Information:

  -Recalibration of the speedometer, ABS and stability control systems (if applicable) will be required by an authorized GMC/Chevy Dealer

  -Must enlarge lower control arm sway bar end link mounting hole to 3/4”

  -Will not work on vehicles equipped with rear steering


Click here to see this kit with Bilstein Shock Absorbers
