4" - 6" Lift Kit w/ Bilstein Shock Absorbers - GM Silverado/Sierra 1500 Pickup 2WD

Like the robust 2500 HD platform, the Chevrolet & GMC 6-Lug IFS platform has been a cornerstone for over two decades. The classic GM IFS suspension technology has been proven time and again to provide exceptional handling characteristics and performance. RCD Suspension, with its industry leading sub-frame and spindle technology, has capitalized on this platform to produce a high quality product that exceeds even the most discerning customer needs. RCD Suspension continues to produce these systems for all 1988 through 2008 GM IFS truck and SUV models.

The RCD 6" Suspension System for the 2000 -2006 Chevy/GMC 2500HD 8-lug, 2WD includes CNC machined replacement cast iron steering knuckles, T-6 billet aluminum axle spacers, zinc plated billet steel "Super-Flex" sway bar end links, replacement heavy duty lower link arms, rear coil spring, pan-hard bar, shock absorber relocation bracketry, and Bisltein 5100 Series Shock Absorbers.. Note: no drive shaft modifications are needed for installation.

This kit is compatible with:

  2007-2013 2WD Chevy Silverado 1500

  2007-2013 2WD GMC Sierra 1500 Pickup

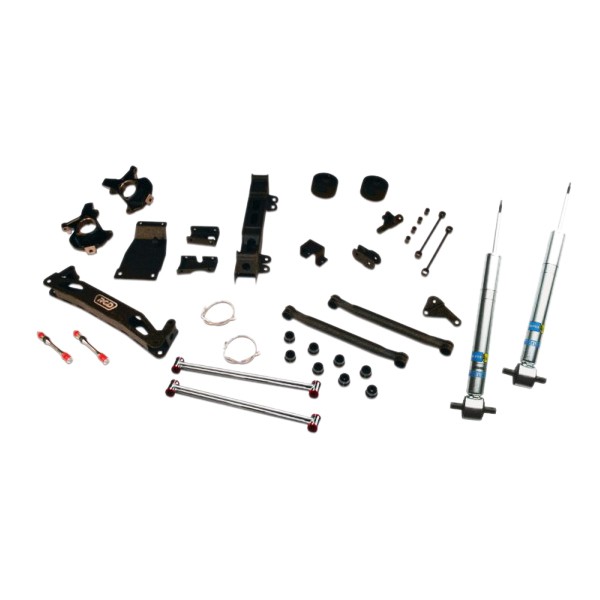

This kit includes:

  -Front & rear crossmembers

  -Front spindles

  -Lateral compression strut kit

  -Main kit

  -Add-a-leaf kit

  -Bilstein 5100 Series Shocks, rear blocks and U-bolts

Wheel/Tire Specifications:

Max Tire Size: 33" x 12.5" w/ no modifications necessary. 35" & larger x 12.5" require minor bumper trimming.

Max Backspace: 35" & larger x 8" -4.5" backspacing. 17" & larger x 8" = 4.625" backspacing.

Additional Information:

  -Will NOT work with Air Ride or Electronic Suspension Systems
  -Recalibration of the speedometer, ABS and stability control systems will be required by an authorized GMC/Chevy Dealer
  -Must enlarge lower control arm sway bar end link mounting hole to 3/4”
  -Will not work on vehicles equipped with rear steering
  -Some models may require an exhaust modification to clear the front driveshaft
  -System fits strut style front suspension models only
