Home > Suspension>Chevy/GMC>1500>4WD>6" Lift Kit w/ Bilstein Shock Absorbers - GM Silverado/Sierra 1500/1500HD/K2500/Blazer/Suburban/Tahoe/ Yukon2dr1500 Pickup 4WD
../68-thickbox_default/6-lift-kit-w-bilstein-shock-absorbers-gm-silveradosierra-15001500hdk2500blazersuburbantahoe2dryukon2dr1500-pickup-4wd.jpg

6" Lift Kit w/ Bilstein Shock Absorbers - GM Silverado/Sierra 1500/1500HD/K2500/Blazer/Suburban/Tahoe/ Yukon2dr1500 Pickup 4WD

4"-6" Suspension System for 1988-1998 4WD Chevy Silverado/GMC Sierra 1500/1500HD/K2500 Pickup, 1992-1999 GMC Blazer/Suburban/Tahoe 2dr/Yukon 2dr 1500, 6-Lug, Old Body Style w/ Bilstein 5100 Series Shock Absorbers.



Part #: 10-41089



MSRP: $2,700.00 USD

More details

RCD builds kits that not only provides the ride you want on the street but give you the performance you deserve on rugged terrain. The first company to design, develop and produce kits with the replacement spindle, RCD boasts nearly two decades of quality workmanship, materials and design - all made in the USA. GM kits, the shining diamond in RCD's crown, are rated as some of the best in the industry. Don't settle for less, insist on RCD Suspension. CNC machined replacement cast iron steering knuckles, T-6 billet aluminum axle spacers, 2-piece lower sub-frame assembly & polished stainless steel, CNC machined zinc plated billet steel sway bar links with oversized urethane bushings. Kit can be purchased with Bilstein shock absorbers or without shocks giving you the flexibility to choose what fits into your budget.



This kit is compatible with:

  •   1988-1998 Chevy Silverado 1500 4WD
  •   1988-1998 GMC Sierra 1500 4WD

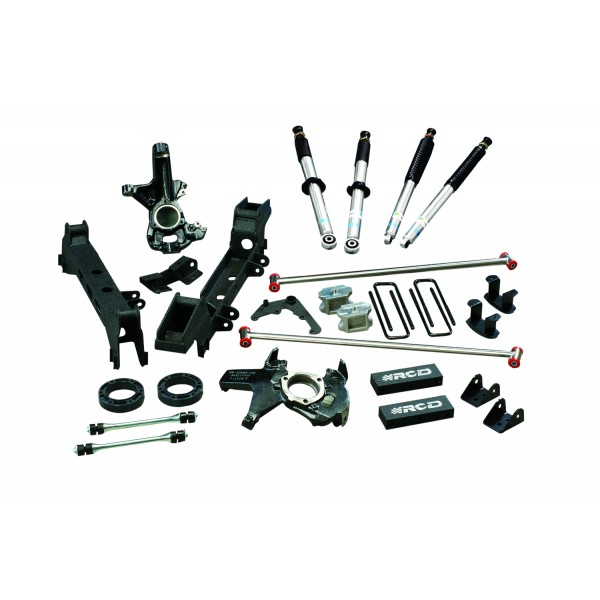

  This kit includes:
  •   Front & rear crossmembers
  •   Front spindles
  •   Lateral compression strut kit
  •   Main kit
  •   Add-a-leaf kit
  •   Bilstein 5100 Series Shock Absorbers

Wheel/Tire Specifications:

  -Max Tire Size: 33" x 12.5" w/ no modifications necessary. 35" & larger x 12.5" require minor fender and/or bumper trimming.

  -Max Backspace: 16" x 8" -4.5" backspacing 16.5" & larger x 8" - 4.75" backspacing

Additional Information:

  -Front system increases vehicle track width 2” for added stability
  -Will NOT work with Air Ride or Electronic Suspension Systems
  -Recalibration of the speedometer, ABS and stability control systems (if applicable) will be required by an authorized GMC/Chevy Dealer
  -Must enlarge lower control arm sway bar end link mounting hole to 3/4”
  -Will not work on vehicles equipped with spindle mounted ABS sensor
  -Some models may require an exhaust modification to clear the front driveshaft
  -Vehicles equipped with rear sway bar require part # 20-68786
