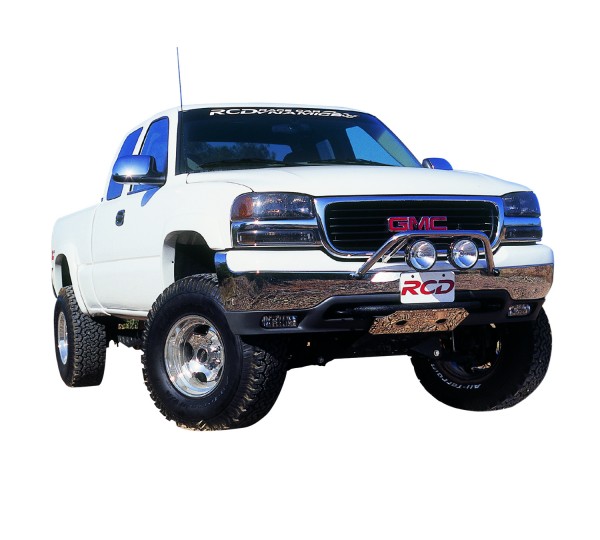

4"-6" Lift Kit w/ Bilstein Shock Absorbers - GM Silverado/Sierra 1500 Pickup 4WD

4"-6" Suspension System for 4WD 1999-2007 GMC Sierra 1500 Pickup/Chevy Silverado 1500 with Bilstein 5100 Series Shock Absorbers.



Part #: 10-41099



MSRP: $1,725.00 USD

More details

"RCD builds kits that not only provides the ride you want on the street but give you the performance you deserve on rugged terrain. The first company to design, develop and produce kits with the replacement spindle, RCD boasts nearly two decades of quality workmanship, materials and design - all made in the USA. GM kits, the shining diamond in RCD's crown, are rated as some of the best in the industry. Don't settle for less, insist on RCD Suspension. RCD lift kits for the 99-06 4WD Chevy/GMC K1500 include CNC machined replacement cast iron steering knuckles, fully machined, T-6 billet aluminum axle spacers, heavy duty 2- piece lower sub-frame assembly and polished stainless steel ""twin -link"" anti-compression struts, CNC machined, zinc plated billet steel sway bar links with over-size urethane bushings. Kit can be purchased with Bilstein shock absorbers or without shocks giving you the flexibility to choose what fits into your budget."



This kit is compaitble with:

  1999-2007 4WD GMC Sierra 1500 Pickup

  1999-2007 4WD Chevy Silverado 1500

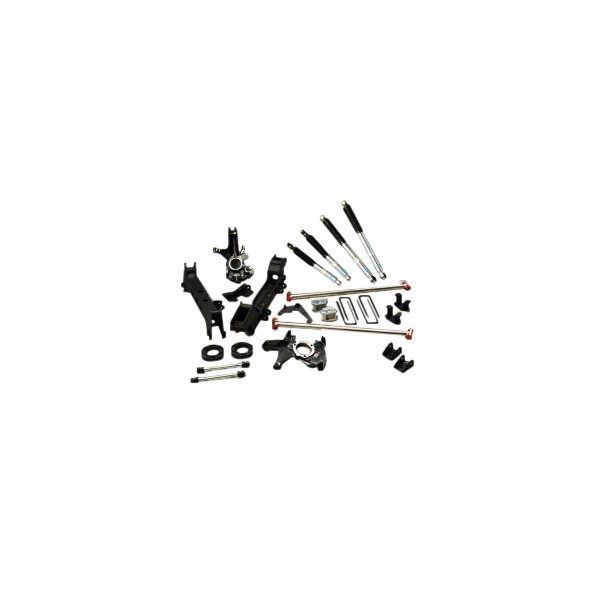

This suspension system includes:

  -Front & Rear Crossmembers

  -Front Spindles

  -Lateral Compression Strut Kit

  -Main Kit

  -Add-a-Leaf Kit

  -Bilstein 5100 Series Shocks

 Wheel/Tire Specifications:

  -Max Tire Size: 33" x 12.5" w/ no modifications necessary. 35" & larger x 12.5" require minor bumper and/or fender trimming.

  -Max Backspace: 16" x 8" -4.5" backspacing. 16.5" & larger x8" = 4.75" backspacing


Additional Information:

  -2007 Model must be the Classic Body Style—otherwise see kit # 10-41407

  -Will NOT work with Air Ride or Electronic Suspension Systems

  -Recalibration of the speedometer, ABS and stability control systems will be required by an authorized
GMC/Chevy Dealer
  -Must enlarge lower control arm sway bar end link mounting hole to 3/4”
  -Will not work on vehicles equipped with rear steering
  -Some models may require an exhaust modification to clear the front driveshaft
