4" Lift Kit w/ Bilstein Shock Absorbers - Ford F250/F350 4WD (Non-Dually)

The launch of the all new Ford "Super Duty" in 2001 brought a frenzy of excitement to Blue Oval truck enthusiasts. A new diesel motor and solid axle front suspension lent itself to ease of modification and RCD Suspension capitalized on this new and popular platform. 2005 brought a whole new platform, eliminating the poor riding leaf springs and putting coils and radius arms in their place. RCD Suspension engineers capitalized on this and put together three systems, 2" Leveling, 4" Standard, and the premium 6" Long Arm 4 Link Conversion Kit. RCD Suspension continues to produce systems for most F-250 / F-350 models from 2001 through 2008 model years.

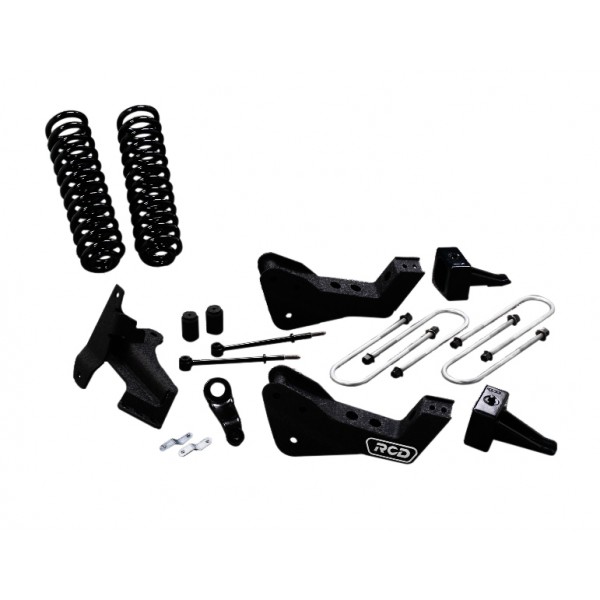

The RCD 4" Suspension System for the 2008-2010 Ford F250 / 350 8-Lug, 4WD includes: Progressive rate coil springs made from high quality U.S. spring steel, providing long life, and superior ride characteristics; custom tuned Bilstein 5100 Series monotube gas shocks; heavy duty 1/4" thick mounting brackets provide enhanced strength and alignment characteristics; 3/8" plate steel extreme duty track bar drop bracket eliminates bump steer and provides the ultimate in strength and durabilit; forged steel drop pitman arm maintains precise steering geometry; extended sway bar links provide factory mounting locations and proper sway bar function; stainless steel extended front brake lines; and unique "Gator Black" polyurethane powder coat finish.

This kit is compatible with:

•   2008 - 2010 Ford F250 4WD (Non-Dually)
•   2008 - 2010 Ford F350 4WD (Non-Dually)

This kit includes:

  -Radius arms & track bar drop down

  -Coil springs

  -Blocks

  -Bilstein 5100 Series Shock Absorbers

Wheel/Tire Specifications:

  Max Tire Size: 35" x 12.5" - Minor fender and/or bumper trimming may be required.

  Max Backspace: 16" & larger x 8" - 4.625" backspace.

Additional Information:

  -Will NOT work with Air Ride or Electronic Suspension Systems
  -Recalibration of the speedometer, ABS and stability control systems (if applicable) will be required by an authorized Ford Dealer
  -Vehicles equipped with two-piece driveline may require Drive Shaft Support Drop Down Bracket for the factory carrier bearing.  See below.
  -Rear ride height may vary on certain models depending on the height of the factory block.  Additional rear lift may be required on certain models.
