The late model Dodge 8 lug platform has become a mainstay with truck consumers, especially with the Cummins Diesel crowd. The ever popular solid axle front end continues to perform well and has become a benchmark in the truck world. RCD Suspension has utilized its high quality design and manufacturing capability to produce a system that both rides and performs whether on the street or in the dirt.
The RCD 5" Suspension System for the 2003 - 2010 Dodge Ram 2500 / 3500, Single Rear Wheel, Solid Axle Front, 8-Lug, 4WD with Bilstein 5100 Series Shocks Includes: Heavy Duty spring coils replace stock coils increasing ride height by 5"; RCD upper an lower control arms replace stock control arms along with heavy duty tubular track bar bracket and pitman arm; factory-style, rear block and U-bolt assembly (no "Stacking" of blocks.)
This kit is compatible with:
- 2003 - 2013 Dodge Ram 2500/3500 - 4WD
(Single rear wheel only. Non-Dually)

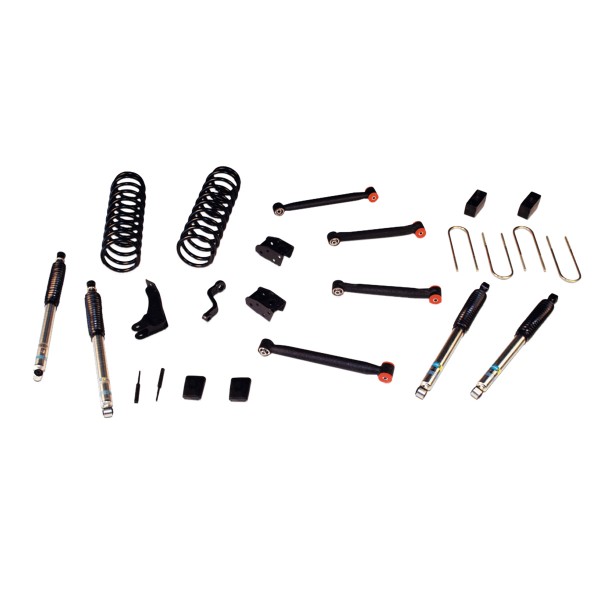

This kit includes:
-Main kit
-Coil Springs
-Bilstein 5100 Series Shock Absorbers
Wheel/Tire Specifications:
Max Tire Size: 35" w/ minor bumper and/or fender trimming.
Max Backspace: 17" & larger x 9" - 4.5" backspacing.
Additional Information:
-Will NOT work with Air Ride or Electronic Suspension Sytems.
-Recalibration of the speedometer, ABS and stability control systems (if applicable) will be required by an authorized Dodge dealer.
-Actual lift height will vary based on engine and chassis combinations. Some instances may require additional rear lift and/or U-Bolts. Call for additional assistance.
-Single rear wheel only/non-dually
-Must select appropriate Pitman Arms to complete the kit installation depending upon year of vehicle.
USE PITMAN ARM 10-20595 FOR 2003-2008 MODELS
USE PITMAN ARM 10-20608 FOR 2009 & UP MODELS
-
