The venerable Ford Ranger has been around for nearly 30 years. The advent of IFS in 1998 on the Ranger model gave RCD Suspension the opportunity to implement its proven sub-frame and spindle IFS technology on the 2wd Ranger. RCD Suspension provides systems for 1998–2009 model years.
The RCD 6" Suspension System for the 1998-2008 Ford Ranger 2WD, Extra Cab, 6 Cylinder includes: CNC machined cast iron steering knuckles, CNC machined, zinc plated billet steel "Super-Flex" sway bar end links feature an upper ball joint assembly for smooth operation, optimizing sway bar geometry and function, factory style rear block and U-bolt combination retains O.E. bump-stop location maintaining load capacity without "Stacking" blocks
This kit is compatible with:
- 1998 - 2011 Ford Ranger Extra Cab & V6 - 2WD

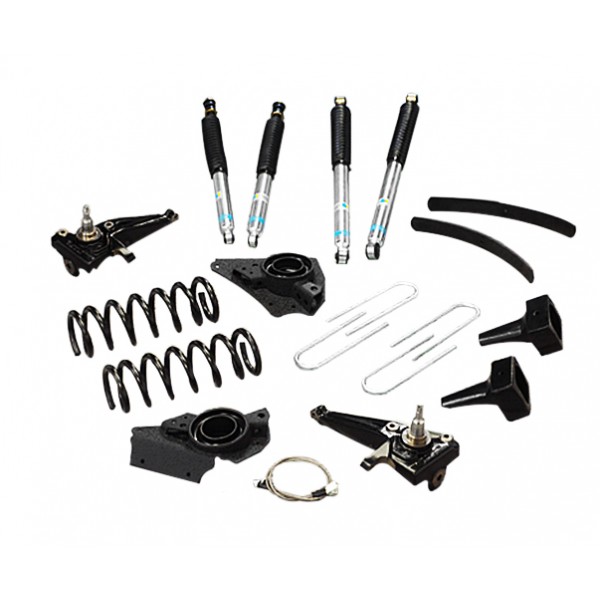

This kit includes:
-Crossmembers
-Front spindles
-Coil-springs
-Add-a-leaf kit
-Bilstein 5100 Series Shock Absorbers
Wheel/Tire Specifications:
Max Tire Size: 33" x 12.5" - Minor trimming may be requried.
Max Backspace: 16" & larger x 8" - 4" backspacing.
Additional Information:
-Will NOT work with Air Ride or Electronic Suspension Systems
-Recalibration of the speedometer, ABS and stability control systems (if applicable) will be required by an authorized Ford Dealer
-Kit is intended for V6 and Extra Cab models with coil spring suspension.
-Suspension system is designed for vehicle with larger front brake rotors. Vehicles manufactured after September 2000. Larger brake rotors measure 10.25”. If vehicle has smaller rotors, a larger rotor will need to be installed.
-Some vehicles may require an exhaust modification to clear rear shackles.
-Vehicles equipped with 8.8 rear axle will require part # 20-69774 U-bolt kit
-
